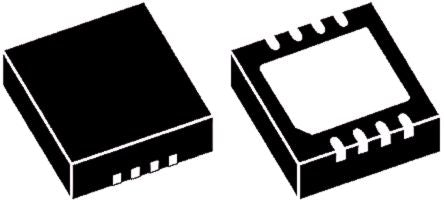

TSZ182IQ2T STMicroelectronics, Zero Drift, Op Amp, RRIO, 3MHz, 5 V, 8-Pin DFN [TSZ182IQ2T]; 162-3659
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Zero Drift |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 5 V |
| Typical Gain Bandwidth Product | 3MHz |
| Output Type | CMOS |
| Typical Slew Rate | 4.7V/µs |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Automotive Standard | AEC-Q001, AEC-Q002, AEC-Q003, AEC-Q100 |
| Width | 2.15mm |
| Height | 0.55mm |
| Rail to Rail | Rail to Rail Input/Output |
| Input Voltage Range | 2.2 → 5.5 V |
| Minimum Input Voltage | 2.2 V |
| Offset Voltage | 45µV |
| Maximum Input Voltage | 5.5 V |
| Length | 2.15mm |
| Output Current | 25 mA, 29 mA |
| Dimensions | 2.15 x 2.15 x 0.55mm |
| Input Offset Current | 0.6nA |
| Typical Voltage Gain | 144 dB |
| Typical Input Voltage Noise Density | 50nV/√Hz |
