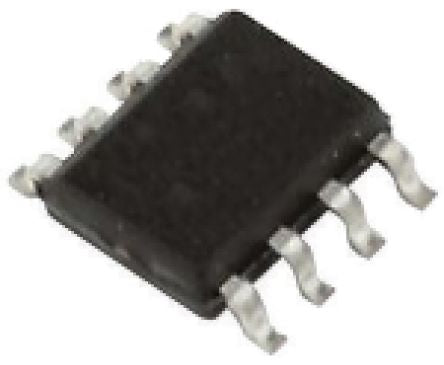

TSZ182IYST STMicroelectronics, High Bandwidth, Op Amp, 2.8MHz, Maximum of 5.5 V, 8-Pin MiniSO [TSZ182IYST]; 175-0734
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | High Bandwidth |
| Mounting Type | Surface Mount |
| Package Type | MiniSO |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Pin Count | 8 |
| Typical Single Supply Voltage | Maximum of 5.5 V |
| Typical Gain Bandwidth Product | 2.8MHz |
| Output Type | Rail to Rail |
| Typical Slew Rate | 4.5V/µs |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Input Offset Current | 600pA |
| Dimensions | 3.2 x 3.1 x 0.95mm |
| Output Current | 11 mA @ ISource, 15 mA @ Isink |
| Offset Voltage | 45µV |
| Typical Input Voltage Noise Density | 40nV/√Hz |
| Typical Voltage Gain | 130 dB |
| Input Voltage Range | 2.2 → 5.5 V |
| Width | 3.1mm |
| Height | 0.95mm |
| Length | 3.2mm |
| Maximum Input Voltage | 5.5 V |
| Minimum Input Voltage | 2.2 V |
