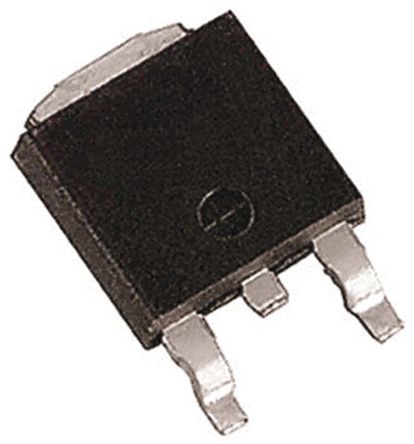

TSM060N03CP ROG N-Channel MOSFET, 80 A, 30 V, 3 + Tab-Pin DPAK Taiwan Semi [TSM060N03CP ROG]; 171-3651
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 80 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | TO-252 |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 9 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.5V |
| Minimum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 54 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±20 V |
| Number of Elements per Chip | 1 |
| Width | 5.8mm |
| Forward Diode Voltage | 1V |
| Typical Gate Charge @ Vgs | 11.1 nC @ 4.5 V |
| Length | 6.5mm |
| Maximum Operating Temperature | +150 °C |
| Height | 2.3mm |
