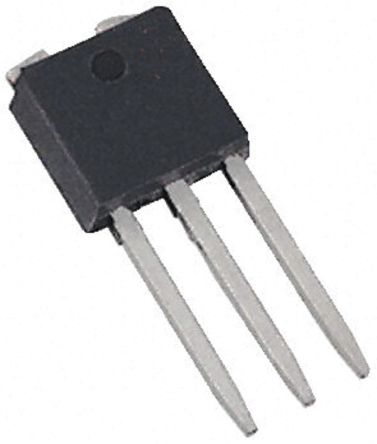

TSM1NB60CH C5G N-Channel MOSFET, 1 A, 600 V, 3-Pin IPAK Taiwan Semi [TSM1NB60CH C5G]; 171-3613
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.0416666666666667 |
| Maximum Drain Source Voltage | 600 V |
| Package Type | TO-251 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 10 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4.5V |
| Minimum Gate Threshold Voltage | 2.5V |
| Maximum Power Dissipation | 39 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±30 V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Width | 2.3mm |
| Typical Gate Charge @ Vgs | 6.1 nC @ 10 V |
| Maximum Operating Temperature | +150 °C |
| Forward Diode Voltage | 1.4V |
| Height | 6.1mm |
| Length | 6.6mm |
