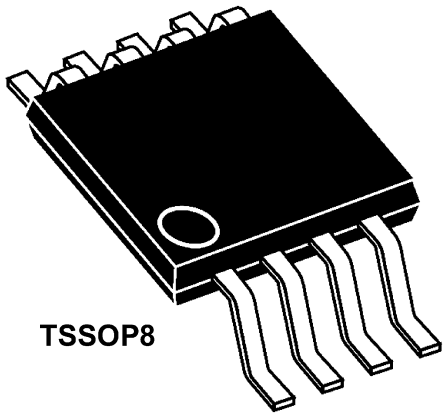

TSM6968DCA RVG Dual N-Channel MOSFET, 6.5 A, 20 V, 8-Pin TSSOP Taiwan Semi [TSM6968DCA RVG]; 146-2235
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 6.5 A |
| Maximum Drain Source Voltage | 20 V |
| Package Type | TSSOP |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 22 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 1V |
| Maximum Power Dissipation | 1.04 W |
| Transistor Configuration | Common Drain |
| Maximum Gate Source Voltage | -12 V, +12 V |
| Number of Elements per Chip | 2 |
| Length | 4.5mm |
| Maximum Operating Temperature | +150 °C |
| Height | 1.05mm |
| Typical Gate Charge @ Vgs | 15 nC @ 4.5 V |
| Minimum Operating Temperature | -55 °C |
| Width | 3.1mm |
| Transistor Material | Si |
