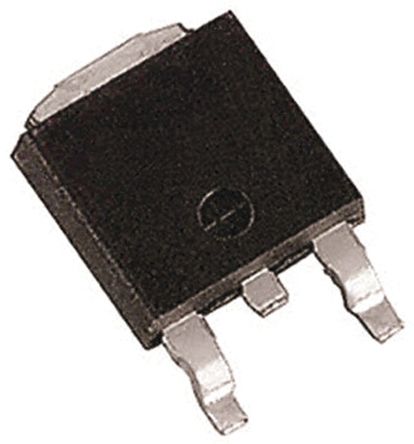

TSM70N600CP ROG N-Channel MOSFET, 8 A, 700 V, 3 + Tab-Pin DPAK Taiwan Semi [TSM70N600CP ROG]; 171-3638
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.333333333333333 |
| Maximum Drain Source Voltage | 700 V |
| Package Type | TO-252 |
| Mounting Type | Surface Mount |
| Pin Count | 3 + Tab |
| Maximum Drain Source Resistance | 600 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 83 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±30 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.4V |
| Maximum Operating Temperature | +150 °C |
| Height | 2.3mm |
| Minimum Operating Temperature | -55 °C |
| Width | 6.1mm |
| Length | 6.6mm |
| Typical Gate Charge @ Vgs | 12.6 nC @ 10 V |
