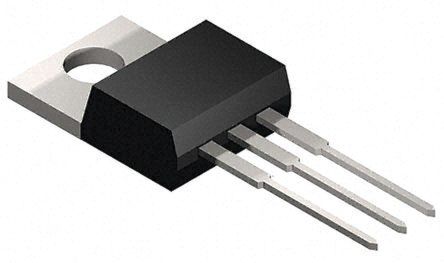

TSM7N90CZ C0G N-Channel MOSFET, 7 A, 900 V, 3-Pin TO-220 Taiwan Semi [TSM7N90CZ C0G]; 171-3673
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 0.291666666666667 |
| Maximum Drain Source Voltage | 900 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 1.9 Ω |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 250 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | ±30 V |
| Number of Elements per Chip | 1 |
| Typical Gate Charge @ Vgs | 49 nC @ 10 V |
| Length | 10mm |
| Maximum Operating Temperature | +150 °C |
| Height | 14.25mm |
| Minimum Operating Temperature | -55 °C |
| Forward Diode Voltage | 1.4V |
| Width | 4.19mm |
