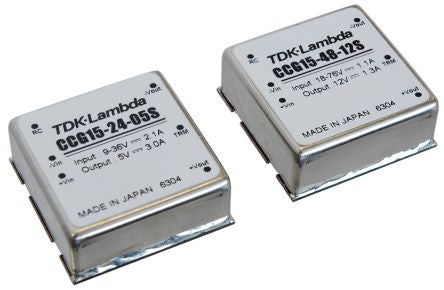

TDK-Lambda CCG15 15.6W Isolated DC-DC Converter Through Hole, Voltage in 18 → 76 V dc, Voltage out 12V dc [CCG-15-48-12S]; 126-3522
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Output Voltage Adjustment Range | 10.8 → 13.2V |
| Input Voltage Range | 18 → 76 V dc |
| Input Voltage Nominal | 18 → 76 V dc |
| Isolation Voltage | 500V dc |
| Power Rating | 15.6W |
| Output Current | 1.3A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.88 |
| Minimum Temperature | -40°C |
| Load Regulation | 48mV |
| Maximum Temperature | +85°C |
| Length | 25.4mm |
| Series | CCG15 |
| Standards Met | CE, EN 60950-1, UL/CSA 60950-1 |
| Depth | 9.9mm |
| Width | 25.4mm |
