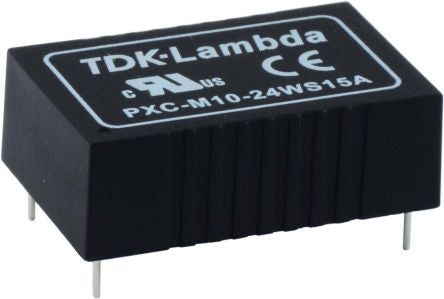

TDK-Lambda PXC-M06W 6W Isolated DC-DC Converter PCB Mount, Voltage in 9 → 36 V dc, Voltage out 24V dc Medical [PXC-M06-24WS-24]; 173-9158
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 24V dc |
| Output Voltage Adjustment Range | -0.005 |
| Input Voltage Range | 9 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 5kV ac |
| Power Rating | 6W |
| Output Current | 250mA |
| Mounting Type | PCB Mount |
| Number of Outputs | 1 |
| Efficiency | 0.885 |
| Medical Approved | Yes |
| Railway Approved | No |
| Minimum Temperature | -40°C |
| Maximum Temperature | +88°C |
| Width | 20.3mm |
| Depth | 10.2mm |
| Length | 31.8mm |
| Series | PXC-M06W |
| Standards Met | ANSI/AAMI ES60601-1, CE Mark, Class A and FCC part 18, Easier System Approval, EN55011, EN55022, EN60601-1, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60601-1, MIL-STD-810F, 60601-1 Approval |
