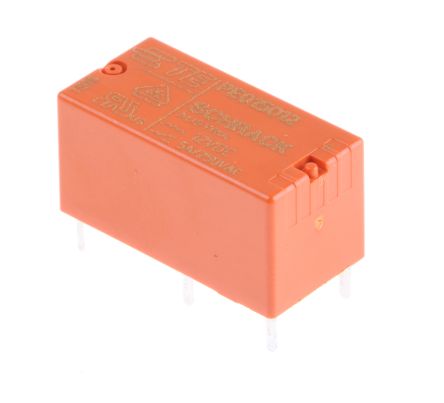

SPDT PCB Mount Latching Relay 5 A, 12V dc [1-1393219-4]; 164-0591
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12 V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 0.208333333333333 |
| Maximum Switching Voltage AC | 400V ac |
| Length | 20mm |
| Depth | 10mm |
| Height | 10mm |
| Dimensions | 20 x 10 x 10mm |
| Terminal Type | Through Hole |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Coil Resistance | 685 Ω |
| Maximum Switching Power AC | 1.25 kVA |
| Coil Power | 210mW |
| Life | 15000000 (Mechanical) cycles |
| Isolation Coil To Contact | 4kV rms |
| Minimum Operating Temperature | -40°C |
| Number of Poles | 1 |
| Contact Material | Silver Alloy |
| Features | Flux Proof Construction |
