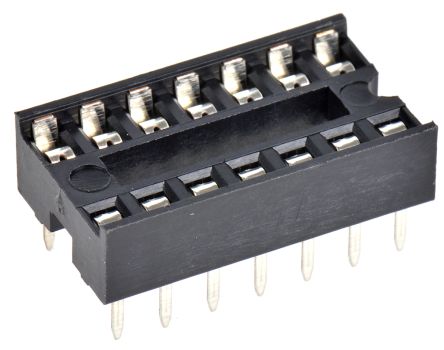

TE Connectivity 1-2199298 2.54mm Pitch Straight 14 Way, Through Hole Standard Pin Ladder IC Dip Socket, 1A [1-2199298-3]; 164-6099
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 14 |
| Mounting Type | Through Hole |
| Pin Type | Standard |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Ladder |
| Termination Method | Solder |
| Contact Plating | Tin over Nickel |
| Current Rating | 1A |
| Orientation | Straight |
| Length | 17.78mm |
| Width | 10mm |
| Depth | 5.1mm |
| Dimensions | 17.78 x 10 x 5.1mm |
| Maximum Operating Temperature | +105°C |
| Housing Material | Glass Filled PBT, Thermoplastic |
| Minimum Operating Temperature | -40°C |
| Voltage Rating | 250 V ac/dc |
| Series | 1-2199298 |
| Contact Material | Phosphor Bronze |
