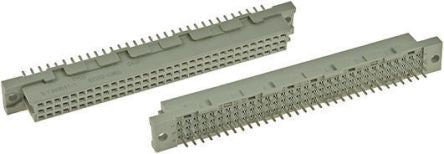

TE Connectivity Eurocard Series 24 + 8 Way, Type M Class C2, Straight DIN 41612 Connector, Socket [148384-5]; 173-5524
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 24 + 8 |
| Gender | Female |
| Body Orientation | Straight |
| Termination Method | Solder |
| Row Loading | A/b/c |
| Type | M |
| Contact Plating | Gold over Palladium Nickel |
| Mounting Type | Through Hole |
| Class Rating | C2 |
| Contact Material | Phosphor Bronze |
| Maximum Contact Resistance | 15mΩ |
| Housing Material | PET |
| Series | Eurocard |
| Voltage Rating | 250 V ac |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
