154718-3_C 680-2313

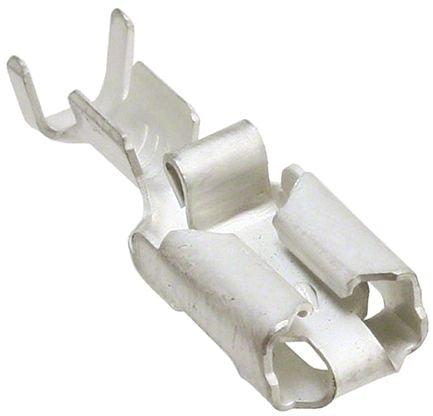

TE Connectivity Terminal: flat; 6.3mm; 0.8mm; female; 0.7÷2mm2; crimped; for cable; 154718-3/C [154718-3]

Mã nhà sản xuất

154718-3

Thương hiệu

TE CONNECTIVITY

Mã kho

154718-3_C

Liên hệ

📩 Liên hệ để có giá tốt: [email protected]

Terminal: flat; 6.3mm; 0.8mm; female; 0.7÷2mm2; crimped; for cable; 154718-3/C

THÔNG SỐ KỸ THUẬT
Manufacturer	TE Connectivity
Manufacturer Part No.	154718-3
Type of terminal	flat
Width	6.3mm
Thickness	0.8mm
Kind of terminal	female
Wire cross-section	0.7...2mm2
Electrical mounting	crimped
Mechanical mounting	for cable
Spatial orientation	straight
Ferrule variant	non-insulated
Contact plating	tinned
Contact material	brass
Wire size	18AWG...14AWG
Kind of package	cut from reel
Locking system	latch
Manufacturer series	Positive Lock
Gross weight	1.378 g

Tài liệu: Documentation EN · Product family

Giá: Liên hệ – gửi mã và số lượng về [email protected] để nhận báo giá nhanh.
