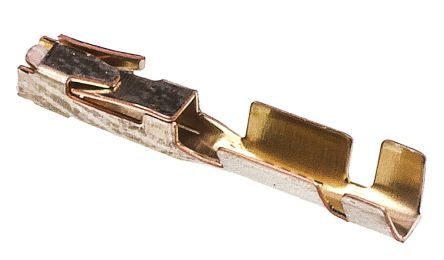

166722-1 TE Connectivity AMPMODU Tandem Spring Female Crimp Terminal Contact 20AWG [166722-1]; 135-5099
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Gender | Female |
| For Use With | AMPMODU MOD IV Connector Housing |
| Series | AMPMODU Tandem Spring |
| Minimum Wire Size mm² | 0.2mm² |
| Termination Method | Crimp |
| Maximum Wire Size mm² | 0.5mm² |
| Contact Plating | Gold |
| Minimum Wire Size AWG | 24AWG |
| Contact Material | Phosphor Bronze |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 12mΩ |
| Minimum Operating Temperature | -65°C |
| Maximum Operating Temperature | +105°C |
