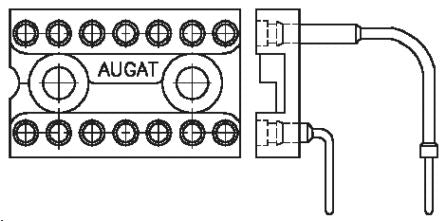

TE Connectivity 2.54mm Pitch Vertical 14 Way, Through Hole Turned Pin Closed Frame IC Dip Socket, 3A [1825088-3]; 161-4504
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 14 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Closed Frame |
| Termination Method | Solder |
| Contact Plating | Gold, Tin |
| Current Rating | 3A |
| Orientation | Right Angle |
| Length | 17.78mm |
| Width | 11.43mm |
| Depth | 13.2mm |
| Dimensions | 17.78 x 11.43 x 13.2mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Housing Material | PET |
| Contact Material | Beryllium Copper |
