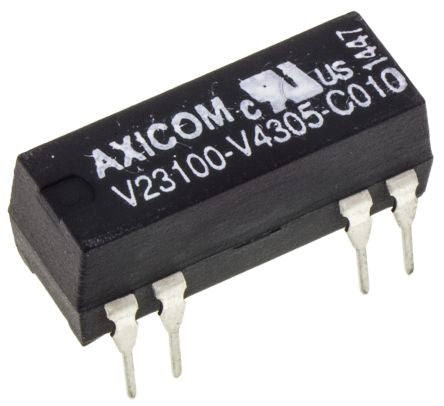

SPDT Reed Relay, 1.2 A, 5V dc [2-1393763-2]; 136-1696
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPDT |
| Coil Voltage | 5V dc |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage AC | 175V ac |
| Maximum Switching Voltage DC | 175V dc |
| Coil Power | 50mW |
| Coil Resistance | 200 Ω |
| Length | 19.3mm |
| Height | 7.5mm |
| Depth | 7mm |
| Dimensions | 19.3 x 7 x 7.5mm |
| Isolation Coil To Contact | 1.5kV rms |
| Operating Time Including Bounce | 1.1ms |
| Terminal Type | Through Hole |
| Contact Resistance | 150 mΩ |
| Contact Material | Ruthenium |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Maximum Switching Power DC | 3 W |
| Minimum Operating Temperature | -40°C |
