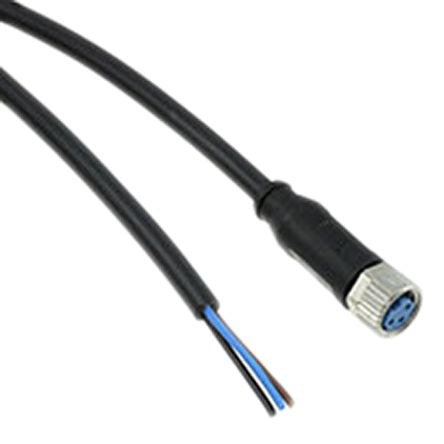

TE Connectivity Straight M8 to Unterminated Cable assembly, 3 Core , 1.5m Cable [2273001-1]; 164-8884
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M8 |
| Connector B | Unterminated |
| Length | 1.5m |
| Number of Cores | 3 |
| Connector A Number of Contacts | 3 |
| Current Rating | 0.166666666666667 |
| Sheath Colour | Black |
| IP Rating | IP65, IP67 |
| Voltage Rating | 60 V ac/dc |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.25 mm² |
| Standards Met | CSA, ELV Compliant, EN 60529, RoHS Compliant, UL |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
| Outer Sheath Material | Polyurethane |
| Minimum Bend Radius | 41 mm |
| Insulation Material | PP |
| Sheath Material | Polyurethane PUR |
| Connector A Housing Gender | Socket |
| American Wire Gauge | 24 |
| Shielding | Unshielded |
| Outer Diameter | 4.1mm |
