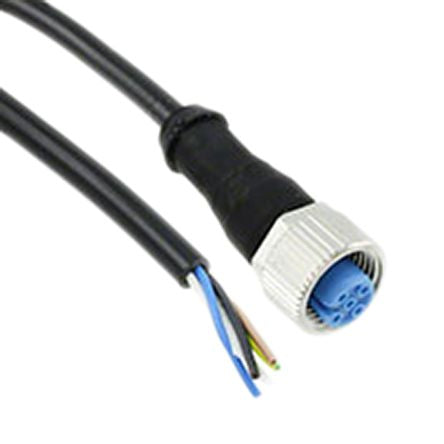

TE Connectivity Straight M12 to Unterminated Cable assembly, 5 Core , 1.5m Cable [2273035-1]; 162-1645
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M12 |
| Connector B | Unterminated |
| Length | 1.5m |
| Number of Cores | 5 |
| Connector A Number of Contacts | 5 |
| Current Rating | 0.166666666666667 |
| Sheath Colour | Black |
| IP Rating | IP65, IP67 |
| Voltage Rating | 125 V ac/dc |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.34 mm² |
| American Wire Gauge | 22 |
| Shielding | Unshielded |
| Minimum Bend Radius | 50 mm |
| Insulation Material | PP |
| Outer Sheath Material | Polyurethane |
| Sheath Material | Polyurethane PUR |
| Outer Diameter | 5mm |
| Standards Met | CSA, ELV Compliant, EN 60529, RoHS Compliant, UL |
| Minimum Operating Temperature | -50°C |
| Connector A Housing Gender | Socket |
| Maximum Operating Temperature | +80°C |
