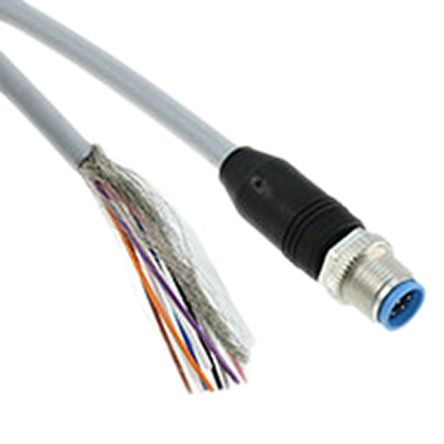

TE Connectivity Straight M12 to Unterminated Cable assembly, 8 Core , 1.5m Cable [2273048-1]; 164-8890
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M12 |
| Connector B | Unterminated |
| Length | 1.5m |
| Number of Cores | 8 |
| Connector A Number of Contacts | 8 |
| Current Rating | 0.0833333333333333 |
| Sheath Colour | Grey |
| IP Rating | IP65, IP67 |
| Voltage Rating | 30 V ac/dc |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.25 mm² |
| Shielding | Shielded |
| American Wire Gauge | 24 |
| Sheath Material | Polyurethane PUR |
| Standards Met | CSA, ELV Compliant, EN 60556, RoHS Compliant, UL |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
| Minimum Bend Radius | 70 mm |
| Insulation Material | PP |
| Outer Sheath Material | Polyurethane |
| Connector A Housing Gender | Plug |
| Outer Diameter | 7mm |
