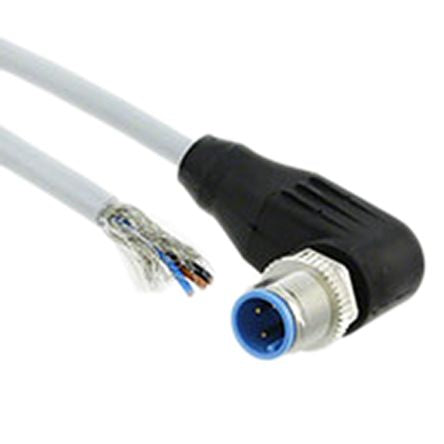

TE Connectivity Right Angle M12 to Unterminated Cable assembly, 3 Core , 1.5m Cable [2273096-1]; 164-6581
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Right Angle M12 |
| Connector B | Unterminated |
| Length | 1.5m |
| Number of Cores | 3 |
| Connector A Number of Contacts | 3 |
| Current Rating | 0.166666666666667 |
| Sheath Colour | Grey |
| IP Rating | IP65, IP67 |
| Voltage Rating | 60 V ac/dc |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.34 mm² |
| Standards Met | CSA, ELV Compliant, EN 60558, RoHS Compliant, UL |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -30°C |
| Outer Sheath Material | Polyurethane |
| Insulation Material | PP |
| Minimum Bend Radius | 59 mm |
| Shielding | Shielded |
| American Wire Gauge | 22 |
| Sheath Material | Polyurethane PUR |
| Connector A Housing Gender | Plug |
| Outer Diameter | 5.9mm |
