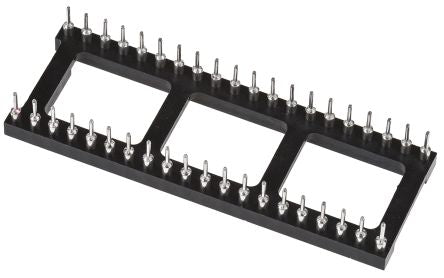

TE Connectivity DIPLOMATE 800 2.54mm Pitch Vertical 40 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 3A [3-1571586-2]; 680-1679
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 40 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 15.24mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Gold, Tin |
| Current Rating | 3A |
| Orientation | Vertical |
| Length | 50.8mm |
| Width | 4.57mm |
| Depth | 17.78mm |
| Dimensions | 50.8 x 4.57 x 17.78mm |
| Minimum Operating Temperature | -55°C |
| Series | DIPLOMATE 800 |
| Maximum Operating Temperature | +105°C |
| Housing Material | PCT |
| Contact Material | Beryllium Copper |
