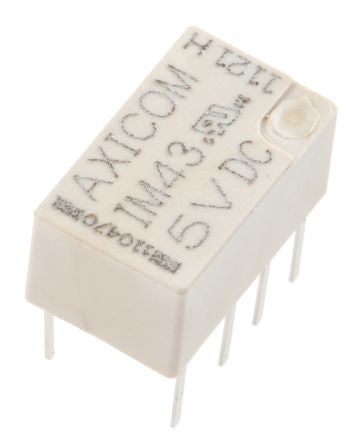

DPDT PCB Mount Latching Relay 2 A, 5V dc For Use In Automotive, Telecommunications Applications [5-1462037-8]; 718-1954
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 0.0833333333333333 |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 220V dc |
| Maximum Switching Power DC | 60 W |
| Series | Axicom |
| Length | 10mm |
| Depth | 6mm |
| Height | 5.65mm |
| Dimensions | 10 x 6 x 5.65mm |
| Terminal Type | Through Hole |
| Application | Automotive, Telecommunications |
| Contact Material | Gold Plated |
| Maximum Operating Temperature | +85°C |
| Number of Poles | 2 |
| Minimum Operating Temperature | -40°C |
| Isolation Coil To Contact | 1.8kV rms |
| Coil Power | 100mW |
| Maximum Switching Power AC | 62.5 VA |
| Coil Resistance | 250 Ω |
| Operating Temperature Range | -40 → +80°C |
