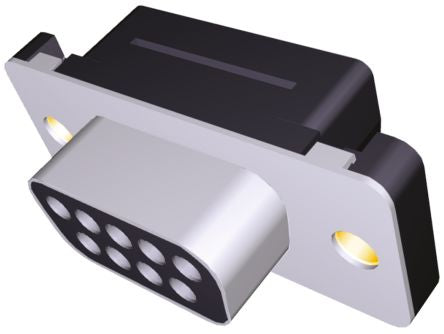

TE Connectivity AMPLIMITE HDF-20 Series 2.77mm Pitch 9 Way IDC D-Sub Ribbon Cable Connector, Socket, Steel Shell [5746861-4]; 161-8704
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 9 |
| Gender | Female |
| Body Orientation | Right Angle |
| Mounting Type | Cable Mount |
| Pitch | 2.77mm |
| Termination Method | IDC |
| Current Rating | 1.0 A, 1.5A |
| Housing Material | Steel |
| Voltage Rating | 250.0 V |
| Length | 30.89mm |
| Width | 18.62mm |
| Depth | 12.6mm |
| Dimensions | 30.89 x 18.62 x 12.6mm |
| Contact Size | 20 |
| Maximum Operating Temperature | +105°C |
| Series | Amplimite HDF-20 |
| Minimum Operating Temperature | -55.0°C |
| Contact Plating | Gold |
| Contact Material | Phosphor Bronze |
