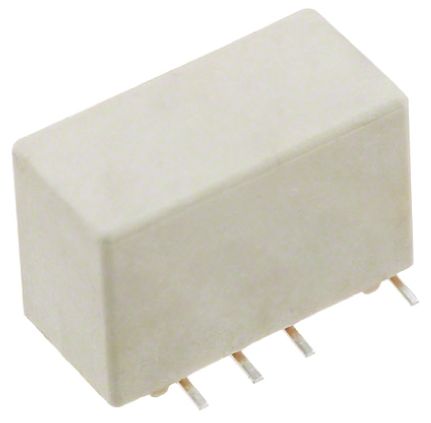

DPDT Surface Mount Latching Relay 5 A, 5V dc For Use In Signal Applications [7-1393788-3]; 164-5072
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Contact Configuration | DPDT |
| Switching Current | 0.208333333333333 |
| Mounting Type | Surface Mount |
| Maximum Switching Voltage AC | 250V |
| Maximum Switching Voltage DC | 220V |
| Maximum Switching Power DC | 60 W |
| Length | 14.5mm |
| Depth | 7.2mm |
| Height | 10.4mm |
| Dimensions | 14.5 x 7.2 x 10.4mm |
| Terminal Type | PCB Pin |
| Application | Signal |
| Isolation Coil To Contact | 1.5kV rms |
| Maximum Operating Temperature | +85°C |
| Coil Power | 140mW |
| Minimum Operating Temperature | -40°C |
| Number of Poles | 2 |
| Contact Material | Gold Plated |
| Operating Temperature Range | -40 → +85°C |
| Coil Resistance | 178 Ω |
| Life | 1 x 10⁷ Operations |
| Maximum Switching Power AC | 62.5 VA |
