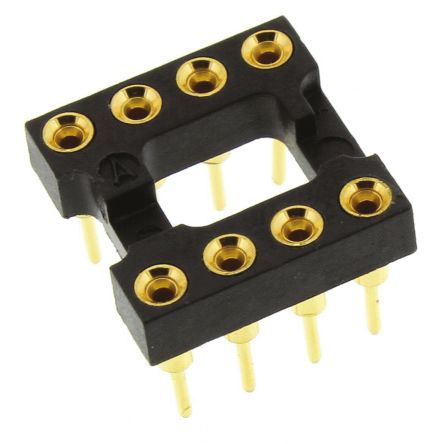

TE Connectivity 2.54mm Pitch Vertical 8 Way, Through Hole Turned Pin Open Frame IC Dip Socket, 3A [808-AG10D]; 718-5155
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 8 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 7.62mm |
| Frame Type | Open Frame |
| Termination Method | Solder |
| Contact Plating | Gold |
| Current Rating | 3A |
| Orientation | Vertical |
| Length | 10.16mm |
| Width | 10.16mm |
| Depth | 2.67mm |
| Dimensions | 10.16 x 10.16 x 2.67mm |
| Housing Material | PET |
| Minimum Operating Temperature | -55°C |
| Contact Material | Beryllium Copper |
| Maximum Operating Temperature | +105°C |
