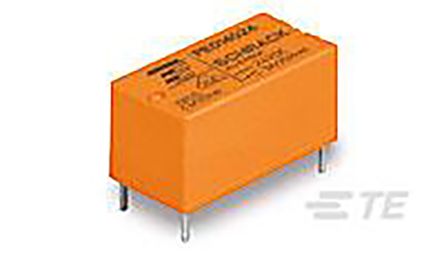

SPDT PCB Mount Latching Relay 5 A, 2.2V dc [9-1415389-1]; 191-8318
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 2.2 V dc |
| Contact Configuration | SPDT |
| Switching Current | 0.208333333333333 |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage AC | 400V |
| Series | PE |
| Length | 20mm |
| Depth | 10mm |
| Height | 10mm |
| Dimensions | 20 x 10 x 10mm |
| Terminal Type | PCB Pin |
| Number of Poles | 1 |
| Maximum Switching Power AC | 220 mW |
| Contact Material | Silver Alloy |
| Life | 5 x 10^6 (Mechanical) cycles |
| Coil Power | 220mW |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Features | Plastic Materials According to IEC 60335-1 (Domestic Appliances), Polarized Bistable Version, Sensitive Version with 200 mW Coil, 1 Form C (CO), 1 Pole 5 A |
| Operating Temperature Range | -40 → +85°C |
| Coil Resistance | 22 Ω |
| Electrical Life | 100 x 10^3 cycles |
| Isolation Coil To Contact | 4000Vrms |
