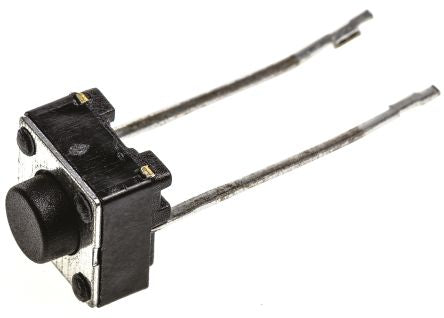

Black Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 24 V dc 1.4mm [FSM4JRT]; 718-2415
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Through Hole |
| Switch Operation | Momentary |
| Actuator Length | 1.4mm |
| Actuator Colour | Black |
| Actuator Type | Button |
| Dimensions | 6 x 6 x 5mm |
| Contact Current Rating | 50 mA @ 24 V dc |
| Operating Force | 2.206 N |
| Maximum Operating Temperature | +105°C |
| Height | 5mm |
| Operating Temperature Range | -35 → +105°C |
| Mechanical Life | 100000Operations |
| Minimum Operating Temperature | -35°C |
| Contact Material | Silver Plated Nickel Brass (Stationary); Silver Phosphor Bronze (Movable) |
