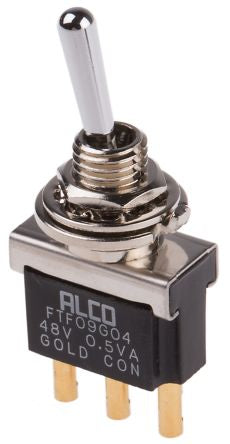

TE Connectivity Single Pole Double Throw (SPDT) Locking Toggle Lever Switch, (On)-On, Panel Mount [FTF09G04]; 163-8523
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | On-(On) |
| Contact Current Rating | 14 mA @ 28 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 6.2mm |
| Actuator Length | 16.5mm |
| Actuator Material | Chrome Plated Brass |
| Contact Resistance | 20mΩ |
| Maximum Operating Temperature | +80°C |
| Standards Met | CSA Recognised, RoHS, UL 94V-0 |
| Minimum Operating Temperature | -20°C |
| Contact Material | Gold Plated |
| Operating Temperature Range | -20 → +80°C |
| Mechanical Life | 100000Operations |
