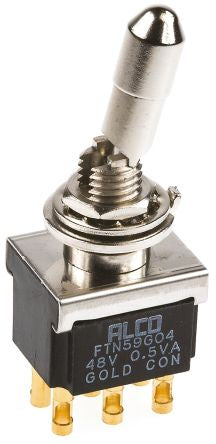

TE Connectivity Double Pole Double Throw (DPDT) Toggle Switch, Latching, Panel Mount [FTN59G04]; 317-588
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | Latching |
| Contact Current Rating | 400 mA @ 20 V |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| Panel Cut Out Diameter | 6.2mm |
| Actuator Length | 10.5mm |
| Actuator Material | Brass |
| Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -20°C |
| Contact Material | Copper Alloy |
| Operating Temperature Range | -20 → +70°C |
| Mechanical Life | 100000Cycles |
| Maximum Operating Temperature | +80°C |
| Standards Met | CSA Recognised, RoHS, UL 94V-0 |
