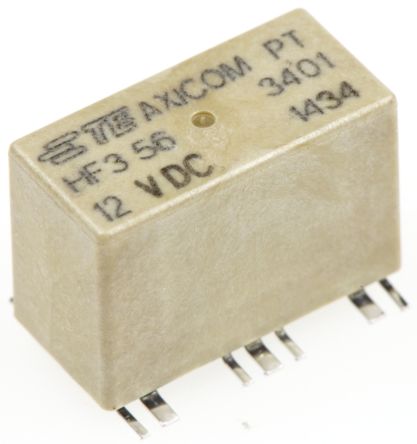

SPDT PCB Mount, RF Relay, 3GHz 12V dc [HF3-56]; 135-5075
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Coil Frequency | 3GHz |
| Coil Resistance | 1.028 kΩ |
| Contact Resistance | 100 mΩ |
| Impedance | 50Ω |
| Contact Configuration | SPDT |
| Coil Voltage | 12 V dc |
| Mounting Type | PCB Mount |
| Contact Voltage | 250V dc |
| Coil Power | 140mW |
| Contact Material | Gold Plated |
| Depth | 9.4mm |
| Length | 14.6mm |
| Maximum Operating Temperature | +85°C |
| Life | 10000000 cycles |
| Minimum Operating Temperature | -55°C |
| Height | 10mm |
| Operating Time Including Bounce | 3 → 5ms |
| Operating Temperature Range | -55 → +85°C |
| Dimensions | 14.6 x 9.4 x 10mm |
