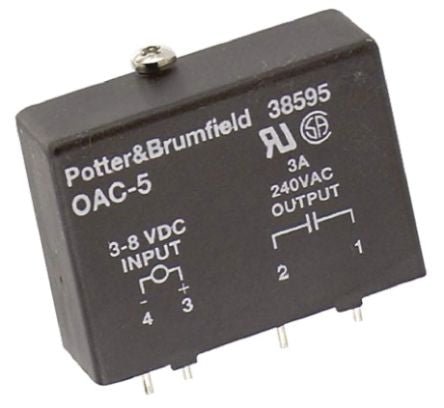

TE Connectivity 3 A SPNO Interface Relay Module, AC/DC, PCB Mount, Triac, 280 V rms Maximum Load [OAC-5]; 783-0243
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.05 A |
| Maximum Load Current | 0.125 |
| Mounting Type | PCB Mount |
| Minimum Load Voltage | 24 V rms |
| Maximum Load Voltage | 280 V rms |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 8 V dc |
| Switching Type | AC/DC |
| Contact Configuration | SPNO |
| Terminal Type | PCB Pin |
| Output Device | Triac |
| Package Style | Module |
| Maximum Turn On Time | 8.3 ms |
| Dimensions | 43.18 x 15.2 x 31.8mm |
| Control Voltage Range | 3 → 8 V dc |
| Load Voltage Range | 24 → 280Vrms |
| Off State Leakage Current | 2 mA rms |
| Depth | 15.2mm |
| Height | 31.8mm |
| Operating Temperature Range | -30 → +80°C |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -30°C |
| Length | 43.18mm |
