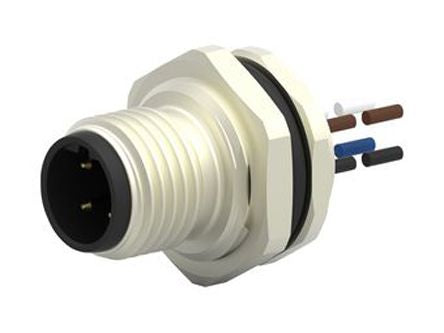

TE Connectivity T417 Series, Straight M12 to Unterminated Industrial Automation Cable Assembly, 4 Core , 222mm Cable [T4171010004-001]; 134-5780
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connector A | Straight M12 |
| Connector B | Unterminated |
| Length | 220mm |
| Number of Cores | 4 |
| Connector A Number of Contacts | 4 |
| Current Rating | 0.166666666666667 |
| IP Rating | IP67 |
| Voltage Rating | 250 V ac/dc |
| Cable Shape | Multicore |
| Cross Sectional Area | 0.34 mm² |
| Conductor Material | Copper |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Standards Met | IEC 61076-2-101, UL, UL 94 V-0 |
| Connector A Housing Gender | Plug |
| American Wire Gauge | 22 |
| Conductor Resistance | 10 m |
| Shielding | Unshielded |
| Insulation Material | PVC |
| Outer Sheath Material | PVC |
| Series | T417 |
