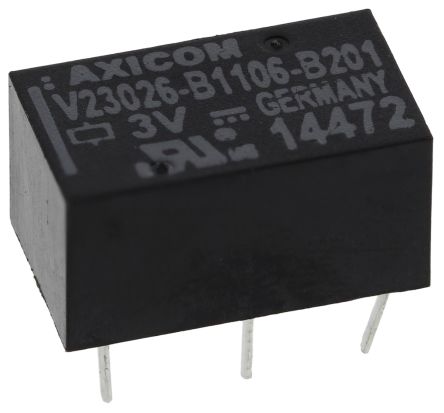

SPDT PCB Mount Latching Relay 1 A, 3V dc [V23026B1106B201]; 135-5170
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 3 V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 0.0416666666666667 |
| Maximum Switching Voltage AC | 125V ac |
| Maximum Switching Voltage DC | 120V dc |
| Length | 13mm |
| Depth | 7.6mm |
| Height | 6.9mm |
| Dimensions | 13 x 6.9 x 7.6mm |
| Terminal Type | Through Hole |
| Number of Poles | 1 |
| Contact Material | Gold Clad, Rhodium Plated Palladium Nickel |
| Life | 1000000000 (Mechanical) cycles |
| Coil Resistance | 137 Ω |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Coil Power | 66mW |
| Maximum Operating Temperature | +85°C |
| Isolation Coil To Contact | 1.5kV rms |
