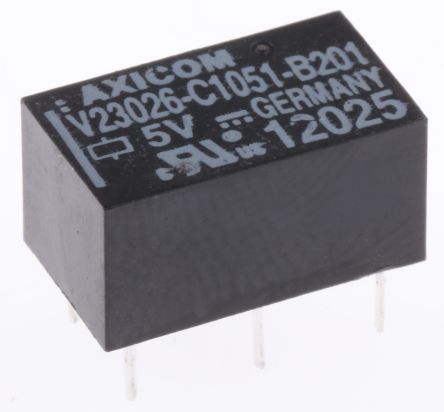

SPDT PCB Mount Latching Relay 1 A, 5V dc [V23026C1051B201]; 256-0526
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 5 V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 0.0416666666666667 |
| Maximum Switching Voltage AC | 150V ac |
| Maximum Switching Voltage DC | 125V dc |
| Series | Axicom |
| Length | 13mm |
| Depth | 7.6mm |
| Height | 6.9mm |
| Dimensions | 13 x 6.9 x 7.6mm |
| Terminal Type | Through Hole |
| Contact Material | Gold Plated, Rhodium Plated Palladium Nickel |
| Isolation Coil To Contact | 1.5kV rms |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Number of Poles | 1 |
| Operating Temperature Range | -40 → +85°C |
| Coil Resistance | 740 Ω |
| Life | 1000000000 (Mechanical) cycles |
| Coil Power | 34mW |
