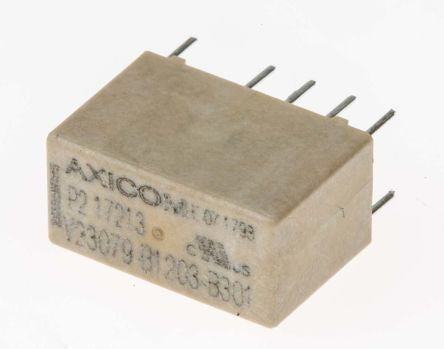

DPDT PCB Mount Latching Relay 5 A, 12V dc For Use In Signal Applications [V23079-B1203-B301]; 515-571
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12 V dc |
| Contact Configuration | DPDT |
| Switching Current | 0.208333333333333 |
| Mounting Type | PCB Mount |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 220V dc |
| Maximum Switching Power DC | 60 W |
| Length | 14.5mm |
| Depth | 7.2mm |
| Height | 9.8mm |
| Dimensions | 14.5 x 9.8 x 7.2mm |
| Terminal Type | Through Hole |
| Application | Signal |
| Coil Resistance | 1.029 kΩ |
| Maximum Switching Power AC | 62.5 VA |
| Coil Power | 140mW |
| Minimum Operating Temperature | -40°C |
| Contact Material | Gold Plated |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Isolation Coil To Contact | 1.5kV rms |
