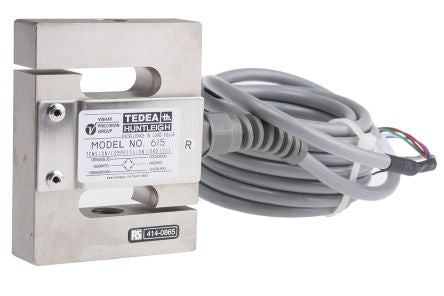

Tedea Huntleigh Compression & Tension Load Cell 300kg, 15V dc, IP67 [0615-0300-G000-RS]; 414-0865
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Force Measured | Compression, Tension |
| Force/ Load Measurement Range | 300kg |
| Maximum Excitation Voltage | 15V dc |
| Output At Rated Load | 2mV/V |
| Housing Material | Nickel Plated Alloy Steel |
| IP Rating | IP67 |
| Terminal Type | Wire Lead |
| Overall Height | 80mm |
| Overall Width | 62.1mm |
| Overall Depth | 26mm |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +40°C |
| Sensor Type | S Type |
