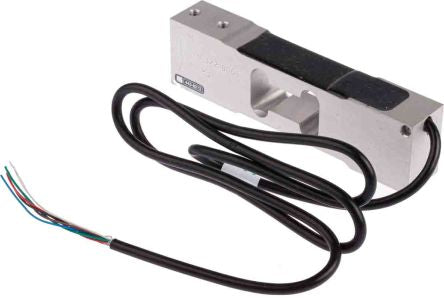

Tedea Huntleigh Compression Load Cell 75kg, 15V dc, IP66 [1042-0075-F000-RS]; 443-8213
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Force Measured | Compression |
| Force/ Load Measurement Range | 75kg |
| Maximum Excitation Voltage | 15V dc |
| Output At Rated Load | 2mV/V |
| Housing Material | Aluminium |
| IP Rating | IP66 |
| Terminal Type | Wire Lead |
| Overall Height | 40mm |
| Overall Width | 150mm |
| Overall Depth | 25.4mm |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +40°C |
| Sensor Type | Single Point |
