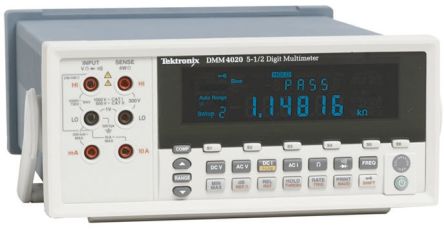

Tektronix DMM4020 Bench Digital Multimeter, 10A ac 750V ac 10A dc 1000V dc [DMM4020-E1]; 697-4196
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Bench |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum Resistance Measurement | 100MΩ |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance |
| True RMS | Yes |
| Maximum Frequency | 20kHz |
| Model Number p | DMM4020 |
| DC Current Measurement Resolution | 0.001µA dc |
| AC Current Measurement Resolution | 0.1µA ac |
| DC Voltage Measurement Resolution | 1µV dc |
| AC Voltage Measurement Resolution | 1µV ac |
| Resistance Measurement Resolution | 1µΩ |
| Best AC Voltage Accuracy | ±0.2% + 0.05 |
| Minimum Operating Temperature | 0°C |
| Height | 88mm |
| Best AC Current Accuracy | ±0.3% + 0.06 |
| Width | 217mm |
| Length | 297mm |
| Safety Category Voltage | 600 V, 1000 V |
| Best DC Current Accuracy | ±0.03% + 0.008 |
| Safety Category Level | CAT I, CAT II |
| Weight | 2.1kg |
| Best Resistance Measurement Accuracy | ±0.02% + 0.003 |
| Best DC Voltage Accuracy | ±0.2% + 0.05 |
| Dimensions | 297 x 217 x 88mm |
| Maximum Operating Temperature | +50°C |
