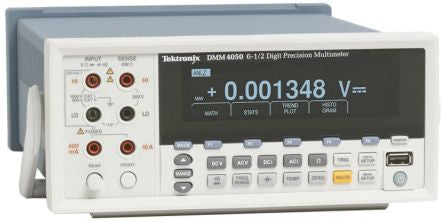

Tektronix DMM4050 Bench Digital Multimeter, 10A ac 1000V ac 10A dc 1000V dc [DMM4050-E1]; 697-4200
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Multimeter Type | Bench |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum Resistance Measurement | 1GΩ |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Temperature Measurement | +600°C |
| Absolute Maximum Capacitance Measurement | 100mF |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature |
| True RMS | Yes |
| Maximum Frequency | 20kHz |
| Model Number p | DMM4050 |
| AC Current Measurement Resolution | 10nA ac |
| DC Current Measurement Resolution | 10nA dc |
| Resistance Measurement Resolution | 1mΩ |
| DC Voltage Measurement Resolution | 10µV dc |
| AC Voltage Measurement Resolution | 10µV ac |
| Temperature Measurement Resolution | 0.001°C |
| Capacitance Measurement Resolution | 1pF |
| Length | 297mm |
| Best Resistance Measurement Accuracy | ±0.01% + 0.001 |
| Safety Category Voltage | 600 V, 1000 V |
| Best DC Current Accuracy | ±0.05% + 0.005 |
| Safety Category Level | CAT I, CAT II |
| Height | 88mm |
| Minimum Operating Temperature | 0°C |
| Best Capacitance Measurement Accuracy | ±1.5 % |
| Best AC Voltage Accuracy | ±0.06% + 0.03 |
| Best Temperature Measurement Accuracy | ±0.8 °C |
| Dimensions | 297 x 217 x 88mm |
| Weight | 3.6kg |
| Width | 217mm |
| Best DC Voltage Accuracy | ±0.024% + 0.0005 |
| Best AC Current Accuracy | ±0.3% + 0.1 |
| Maximum Operating Temperature | +55°C |
