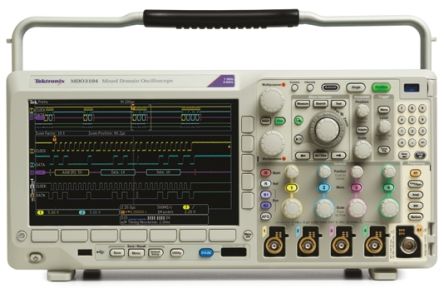

Tektronix, MDO3054 Mixed Domain Oscilloscope, 4 Analogue. Ch., 500MHz [MDO3054]; 797-3324
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | MDO3000 |
| Bandwidth | 500MHz |
| Number of Analogue Channels | 4 |
| Record Length | 10M points/ch |
| Sample Rate Random | 2.5 G samples/s |
| UART Interface | Yes |
| USB Interface | Yes |
| Vertical Resolution | 8 bit |
| Minimum Time Base | 1ns/div |
| Maximum Time Base | 1000s/div |
| Minimum Vertical Sensitivity | 1mV/div |
| Maximum Vertical Sensitivity | 10V/div |
| Weight | 4.2kg |
| Safety Category Level | CAT II |
| Width | 147.4mm |
| Length | 416.6mm |
| RS485 Interface | Yes |
| Safety Category Voltage | 300V |
| Power Source | Mains |
| Screen Size | 9in |
| RS232 Interface | Yes |
| Model Number p | MDO3054 |
| Input Impedance | 1 MΩ, 50 Ω, 75 Ω |
| Dimensions | 416.6 x 147.4 x 203.2mm |
| CAN Interface | Yes |
| RS422 Interface | Yes |
| Height | 203.2mm |
| Minimum Operating Temperature | -10°C |
| Display Type | TFT LCD |
| Maximum Operating Temperature | +55°C |
| Lin Interface | Yes |
| Rise Time | 700ps |
| Safety Category | CAT II 300 V |
| SPI Interface | Yes |
