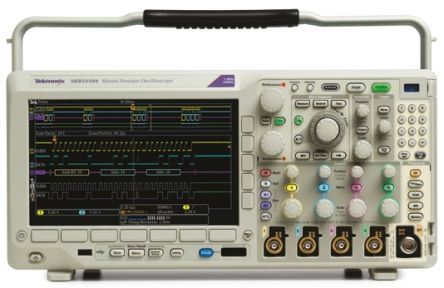

Tektronix, MDO3104 Mixed Domain Oscilloscope, 4 Analogue. Ch., 1GHz [MDO3104]; 797-3312
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | MDO3000 |
| Bandwidth | 1GHz |
| Number of Analogue Channels | 4 |
| Record Length | 10M points/ch |
| Sample Rate Random | 5 G samples/s |
| UART Interface | Yes |
| USB Interface | Yes |
| Vertical Resolution | 8 bit |
| Minimum Time Base | 400ps/div |
| Maximum Time Base | 1000s/div |
| Minimum Vertical Sensitivity | 1mV/div |
| Maximum Vertical Sensitivity | 10V/div |
| Length | 416.6mm |
| Model Number p | MDO3104 |
| RS232 Interface | Yes |
| Dimensions | 416.6 x 147.4 x 203.2mm |
| CAN Interface | Yes |
| RS422 Interface | Yes |
| Minimum Operating Temperature | -10°C |
| Height | 203.2mm |
| Screen Size | 9in |
| Safety Category Voltage | 300V |
| RS485 Interface | Yes |
| Safety Category Level | CAT II |
| Weight | 4.2kg |
| Maximum Operating Temperature | +55°C |
| Lin Interface | Yes |
| Safety Category | CAT II 300 V |
| Display Type | TFT LCD |
| Rise Time | 350ps |
| SPI Interface | Yes |
| Power Source | Mains |
| Width | 147.4mm |
