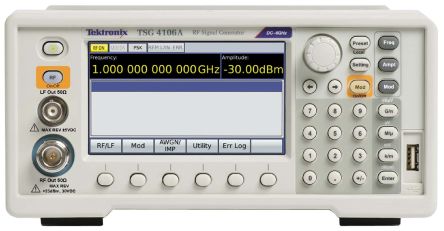

Tektronix TSG4104A Function Generator 4GHz Ethernet, GPIB, RS232, USB [TSG4104A M00]; 876-5806
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency Range Sinewave | 4GHz |
| Minimum Frequency Range Sinewave | 950kHz |
| Minimum Frequency Range Square Pulse and Arbitrary Waveform | 950 kHz |
| Digital Frequency | Yes |
| Digital Amplitude and Offset | Yes |
| Internal and External Amplitude Modulation | Yes |
| FM Modulation | Yes |
| Time Base Accuracy | |
| Height | 114mm |
| Input Impedance | 50 Ω |
| Model Number p | TSG4104A |
| Weight | 5.4kg |
| Minimum Operating Temperature | +5°C |
| Frequency Range Square Pulse and Arbitrary Waveform | 950 kHz → 4 GHz |
| Interface Type | Ethernet, GPIB, RS232, USB |
| Dimensions | 347 x 216 x 114mm |
| Attenuation | -130dB |
| Output Impedance | 50Ω |
| Length | 347mm |
| Width | 216mm |
| Maximum Operating Temperature | +40°C |
