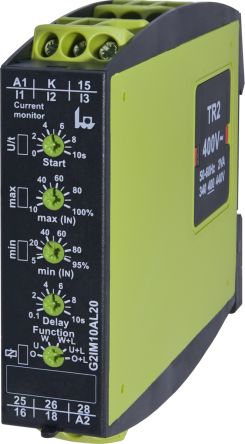

Tele Current Monitoring Relay With DPDT Contacts, 1 Phase, 24 → 240 V ac/dc [G2IM10AL20 24-240VAC/DC]; 123-9748
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 24 → 240 V ac/dc |
| Contact Configuration | DPDT |
| Electrical Phase | 1 |
| Current Sensitivity | Overcurrent, Undercurrent |
| Minimum Current Sensed | 100mA |
| Maximum Current Sensed | 10A |
| Time Delay | 0 → 10 (Start Up) s, 0.1 → 10 (Tripping) s |
| Number of Poles | 2 |
| Width | 108mm |
| Current Range | 100 mA → 10 A |
| Minimum Operating Temperature | -25°C |
| Operating Temperature Range | -25 → +55 °C |
| Terminal Type | Screw |
| Mounting Type | DIN Rail |
| Height | 90mm |
| Length | 22.5mm |
| Standards Met | EN 60715, IEC 60068-2-27, IEC 60664-1, IEC 60668-2-6, IEC 60721-3-3, IEC 60947-5-1, UL 508 |
| Maximum Operating Temperature | +55°C |
| Series | GAMMA |
| Dimensions | 22.5 x 108 x 90 mm |
