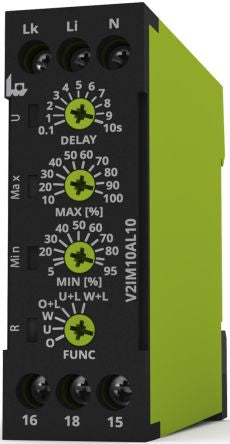

Tele Current Monitoring Relay With SPDT Contacts, 1 Phase, 110 → 240 V ac, 24 → 240 V dc [V2IM10AL10]; 123-9723
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Monitoring Application | Current |
| Supply Voltage | 24 → 240 V dc, 110 → 240 V ac |
| Contact Configuration | SPDT |
| Electrical Phase | 1 |
| Current Sensitivity | Overcurrent, Undercurrent |
| Maximum Current Sensed | 10 (Input) A, 150 (Over Load) A |
| Time Delay | 0.1 → 10 s, 300 ms |
| Series | VEO |
| Standards Met | EN 60715, IEC 60947-5-1, IEC 61000-6-2, IEC 61000-6-4 |
| Maximum Operating Temperature | +60°C |
| Dimensions | 22.5 x 76 x 67 mm |
| Length | 22.5mm |
| Number of Poles | 1 |
| Width | 76mm |
| Current Range | Maximum of 10 (Input) A, Maximum of 150 (Over Load) A |
| Minimum Operating Temperature | -25°C |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Operating Temperature Range | -25 → +60 °C |
| Height | 67mm |
