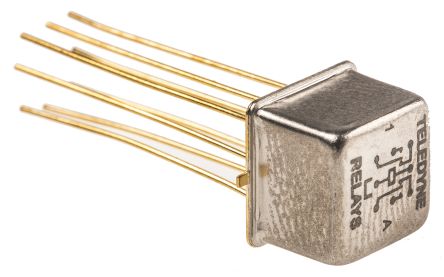

DPDT PCB Mount, RF Relay 5V dc [172-5]; 351-459
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Resistance | 64 Ω |
| Contact Resistance | 150 mΩ |
| Insertion Loss | 0.5dB GHz @ 2 |
| Isolation | 35dB GHz @ 2.0 |
| VSWR Voltage Standing Wave Ratio | 1.12 GHz @ 2.0 |
| Contact Configuration | DPDT |
| Coil Voltage | 5 V dc |
| Mounting Type | PCB Mount |
| Coil Power | 405mW |
| Contact Material | Gold Plated Metal Alloy |
| Maximum Operating Temperature | +85°C |
| Life | 10000000 (Electrical) cycles |
| Height | 7.11mm |
| Depth | 8.51mm |
| Operating Time Including Bounce | 6ms |
| Length | 8.51mm |
| Dimensions | 8.51 x 8.51 x 7.11mm |
| Minimum Operating Temperature | -55°C |
| Operating Temperature Range | -55 → +85°C |
