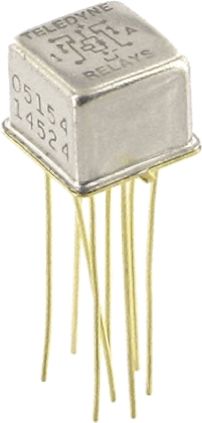

DPDT PCB Mount, RF Relay 12V dc [172D-12]; 758-2423
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Resistance | 400 Ω |
| Contact Resistance | 150 mΩ |
| Contact Configuration | DPDT |
| Coil Voltage | 12 V dc |
| Mounting Type | PCB Mount |
| Contact Voltage | 28V dc |
| Coil Power | 360mW |
| Contact Material | Gold Plated |
| Operating Temperature Range | -55 → +85°C |
| Life | 5000000 cycles |
| Length | 8.51mm |
| Height | 7.11mm |
| Depth | 8.51mm |
| Operating Time Including Bounce | 6ms |
| Dimensions | 8.51 x 8.51 x 7.11mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +85°C |
