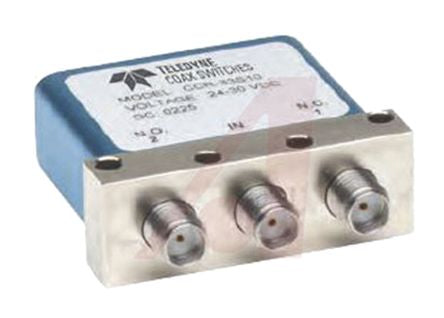

Teledyne CCR-33S1O-N RF Switch SPDT 20ms SMA Female 50Ω 34.04 x 13.21 x 46.23mm 18GHz [CCR-33S1O-N]; 885-8541
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Switch Configuration | SPDT |
| Switching Speed | 20ms |
| Port to Port Isolation | 60dB |
| Maximum Insertion Loss | 0.5dB |
| Connector Type | SMA Female |
| Output Impedance | 50Ω |
| Dimensions | 34.04 x 13.21 x 46.23mm |
| Weight | 46.8g |
| Height | 46.23mm |
| Length | 34.04mm |
| Maximum Frequency | 18GHz |
| Maximum Operating Temperature | +65°C |
| Minimum Operating Temperature | -40°C |
| Width | 13.21mm |
| Minimum Frequency | 0 GHz |
| Model Number p | CCR-33 |
