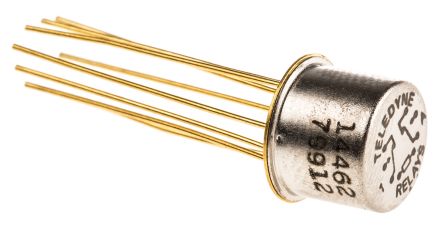

DPDT PCB Mount, RF Relay 12V dc [ER412-12A]; 399-9385
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Resistance | 390 Ω |
| Contact Resistance | 100 mΩ |
| Insertion Loss | 0.4dB GHz@ 1 |
| Isolation | 35dB GHz@ 2.0 |
| VSWR Voltage Standing Wave Ratio | 1.07 GHz@ 1.0 |
| Contact Configuration | DPDT |
| Coil Voltage | 12 V dc |
| Mounting Type | PCB Mount |
| Coil Power | 405mW |
| Contact Material | Gold Plated Metal Alloy |
| Height | 9.86mm |
| Depth | 10.29mm |
| Operating Time Including Bounce | 3.5ms |
| Life | 10000000 (Electrical) cycles |
| Minimum Operating Temperature | -65°C |
| Dimensions | 9.4 x 10.29 x 9.86mm |
| Maximum Operating Temperature | +125°C |
| Operating Temperature Range | -65 → +125°C |
| Length | 9.4mm |
