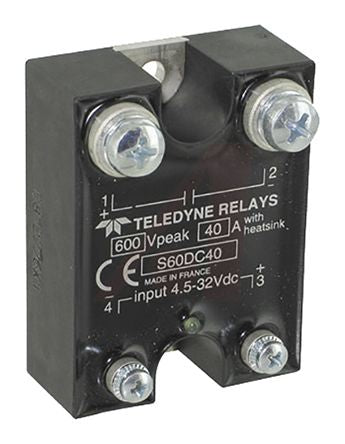

Teledyne 40 A Solid State Relay, DC, Panel Mount, MOSFET, 350 V dc Maximum Load [S60DC40]; 886-4824
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Load Current | 40 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 0 V dc |
| Maximum Load Voltage | 350 V dc |
| Minimum Control Voltage | 4.5 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | DC |
| Terminal Type | Crimp |
| Output Device | MOSFET |
| Maximum Turn On Time | 10 μs |
| Dimensions | 44.5 x 58.2 x 19.6mm |
| Operating Temperature Range | -40 → +90°C |
| Capacitance | 2.2nF |
| Length | 44.5mm |
| Height | 19.6mm |
| Special Features | Latest Generation MOSFET Technology, Low Control Current Consumption, Low Output Leakage Current, Ultra Low on-State Resistance |
| Control Voltage Range | 4.5 → 32 V dc |
| Load Voltage Range | 0 → 350V dc |
| Off State Leakage Current | 250 μA |
| Relay Type | Solid State Relay |
| Depth | 58.2mm |
