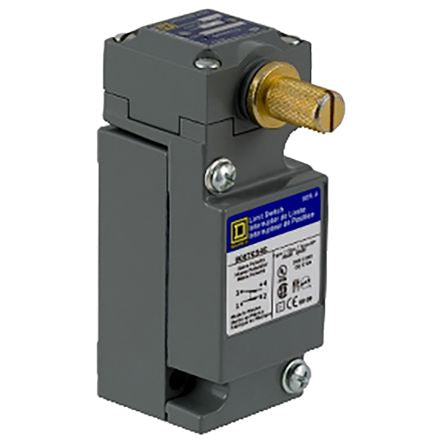

IP67 Snap Action Limit Switch Stay Put Without Operating Lever Metal, NC/NO, 600V [9007C54CM11]; 179-9859
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Rotary head |
| Pole and Throw Configuration | SPDT-DB |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 1.2 A |
| Housing Material | Metal |
| Maximum AC Voltage | 600V |
| Maximum DC Voltage | 600V |
| Connection Type | Screw |
| Series | 9007 |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 39.37mm |
| Width | 63.5mm |
| Minimum Operating Temperature | -20°F |
| Depth | 102.108mm |
| Dimensions | 39.37 x 63.5 x 102.108 mm |
| Standards Met | CE Certified, CSA Certified, UL Listed |
| Maximum Operating Temperature | +185°F |
| Mounting Orientation | Vertical |
| Mechanical Life Minimum | 10000000 cycles |
